Ford Escort Mk6 Van 1800

DSC_0880

A dummy fit ready for the Air filter

A dummy fit ready for the Air filter

The easy way to extract more power from a stock 115PS Zetec is to add a set of bike carbs and a Canems ignition module to control the spark map.The improvement is literally quite massive at around 40 BHP also giving it a lovely torque curve and increased throttle response.

All machine work and welding done by us here in the workshop, we do out source materials and the laser cut flange.

Extended fuel rail spacers

Extended fuel rail spacers

DSC_0874

fuel rail central feed extention

fuel rail central feed extention

Ports all matched and finished

Ports all matched and finished

DSC_0885

Carbs now re centred to match the 92mm centres on the Zetec head

Carbs now re centred to match the 92mm centres on the Zetec head

Short runners were needed on this manifold to allow room for the Air filter

Short runners were needed on this manifold to allow room for the Air filter

DSC_0885 DSC_0890

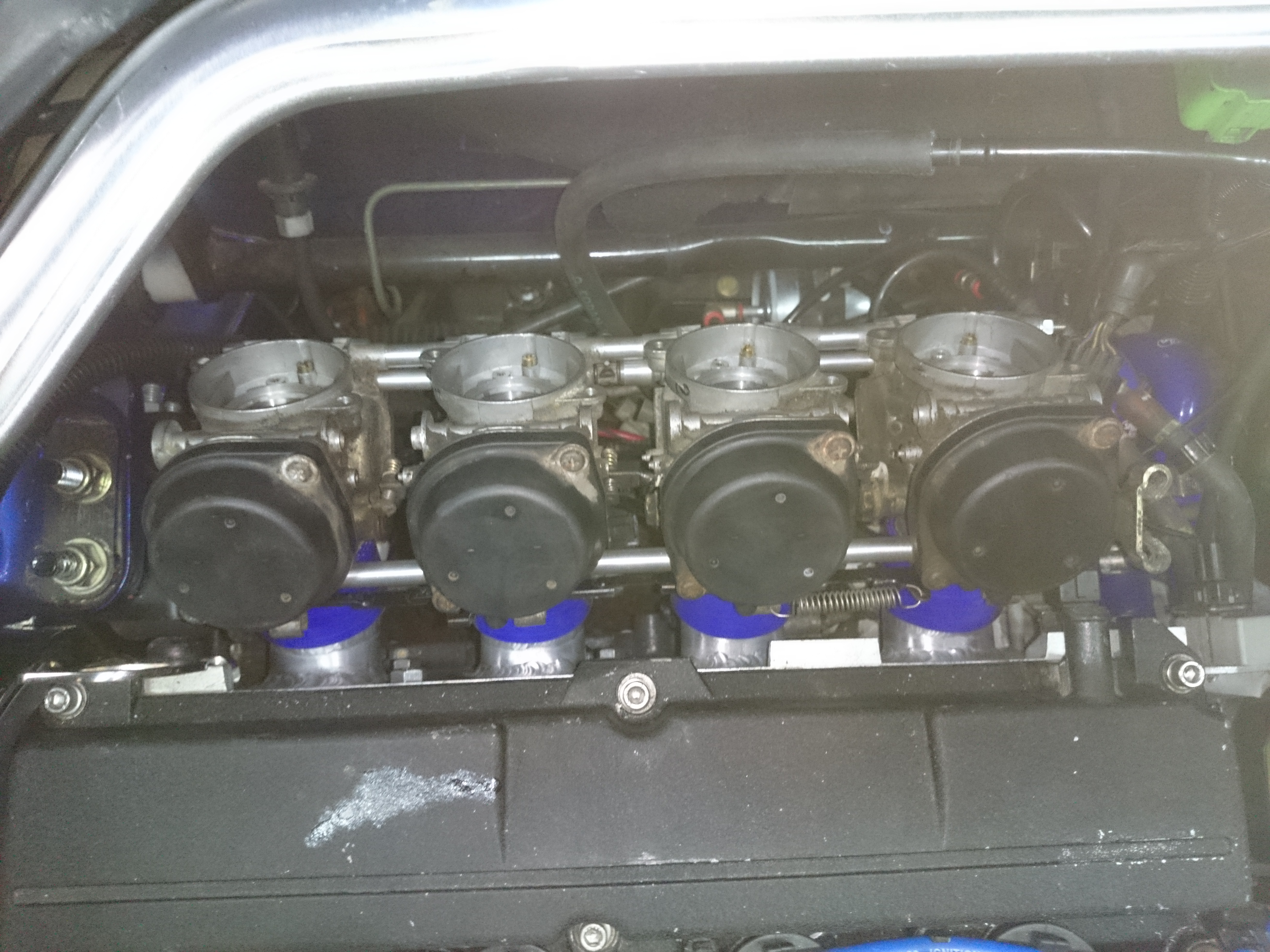

All done , it fits but is snug

All done , it fits but is snug

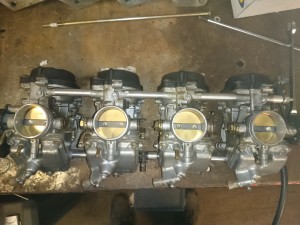

From 75mm to 92 mm centres

From 75mm to 92 mm centres
